VSFF FO Cable Assemblies

We offer Fiber Optic cable assemblies:

MDC & MMC - these state-of-the-art connectors  design ushers in a new era of high density, low insertion loss connectivity, simple insertion/extraction and field configurability.

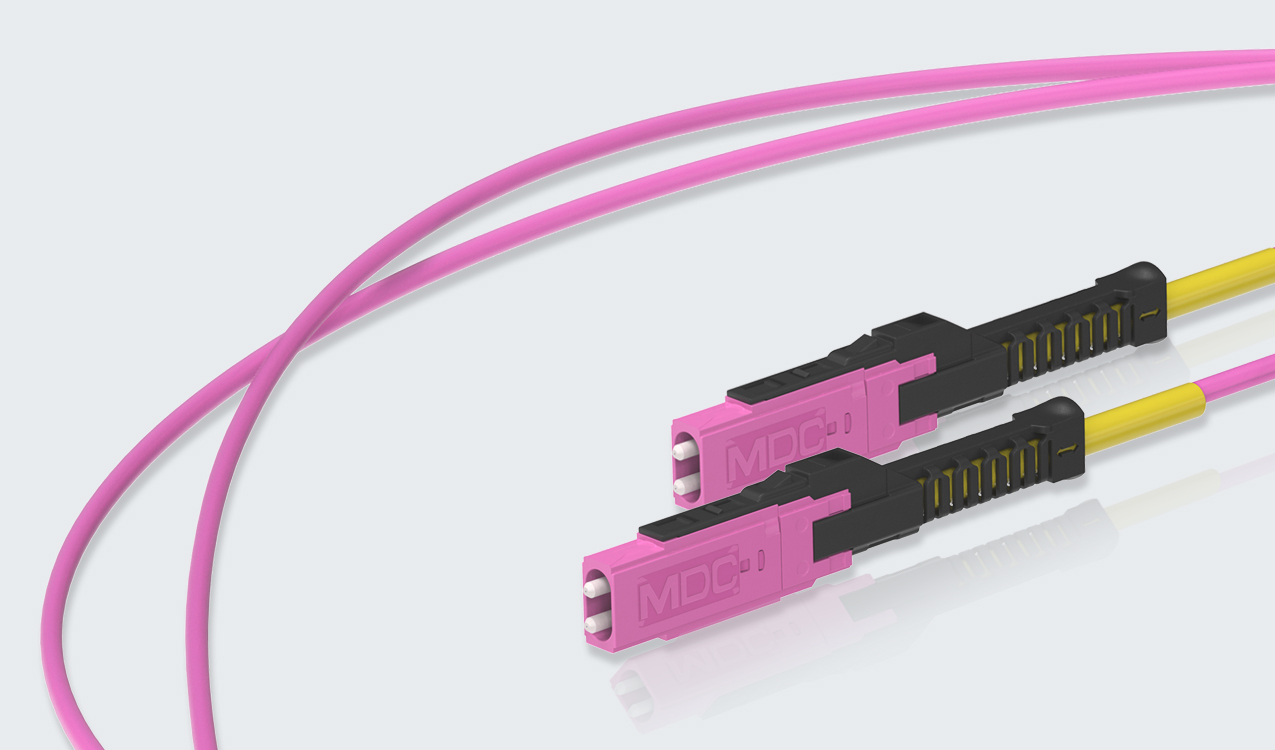

The MDC is a two fiber very small form factor connector manufactured with proven 1.25mm ferrule technology used in industry standard LC connectors. Three port MDC adapters fit directly into standard panel openings for duplex LC adapters, increasing fiber density by a factor of three.

The MMC connector ushers in a new era of high density, low insertion loss connectivity by combining a reduced size, MT-style ferrule (TMT) with a novel very small form factor (VSFF) connector embodiment to satisfy these requirements across multiple data center application spaces, including structured cabling, high fiber count data center interconnects, transceivers and on-board optics.

US Conec's MMC connector is a Very Small Form Factor (VSFF) multi-fiber optical connector designed for termination of single-mode and multimode fiber cables up to 2.5mm in diameter. The MMC connector employs novel TMT ferrule technology harmonized with the MT or MT-16 alignment structure. Individual connector access in the most extremely dense connector environments is easily accomplished using revolutionary DirectConec™ push-pull boot technology.
